Programmable Power Supplies

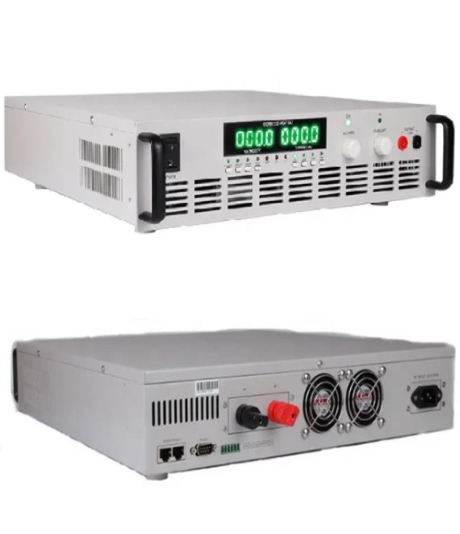

3KW PROGRAMMABLE DC POWER SUPPLIES (KPPS-3000-A1U2)

The KPPS-3000 family of programmable power supplies offers high voltages for flexible, reliable power systems in Industrial and Laboratory applications. It provides constant voltage (CV) and constant current (CC) modes so that users may switch the output priority based on testing requirements. Along with its high precision measurement output, its high-speed transient response and low noise satisfies a variety of devices and test applications in both labs and automated test system integration.

Deferent models offer fixed and auto range output with current ratings up to 50A and voltage ratings up to 400V DC

Features :

  • Wide range of input operations
  • CV/CC modes priority
  • High-precision measurement
  • High speed transient response
  • Low output ripple & noise
  • Remote & local mode operation
  • Remote Compensation
  • User-friendly Functional Key operation with Display.
  • User configurable protection settings with indication
  • Standard USB, LAN, and optional RS-485, RS-422 and RS-232.
  • High Power Density 3KW in 2U
  • 19” Rack Mountable

Input Voltage :

230V AC, 1-Phase
(180V to 275V AC)

Output Voltage :

0 to 400V DC (Max.)

Output Current :

0 to 50A (Max.)

Output Power :

3000W (Max.)

5KW PROGRAMMABLE DC POWER SUPPLIES (KPPS-5000-A3U4)

The KPPS-5000 family of programmable power supplies offers high currents for flexible, reliable power systems in Industrial and Laboratory applications. It provides constant voltage (CV) and constant current (CC) modes so that users may switch the output priority based on testing requirements. Along with its high precision measurement output, its high-speed transient response and low noise satisfies a variety of devices and test applications in both labs and automated test system integration.

Deferent models offer fixed and auto range output with current ratings up to 200A and voltage ratings up to 60V DC.

Features :

  • Wide range of input operations
  • CV/CC modes priority
  • High-precision measurement
  • High speed transient response
  • Low output ripple & noise
  • Remote & local mode operation
  • Remote Compensation
  • User-friendly Functional Key operation with Display.
  • User configurable protection settings with indication
  • Standard USB, LAN, and optional RS-485, RS-422 and RS-232.
  • High Power Density
  • 19” Rack Mountable

Input Voltage :

180V to 275V AC
3-Phase & 4-Wire

Output Voltage :

3-Phase & 4-Wire

Output Current :

0 to 200A (Max.)

Output Power :

5000W (Max.)

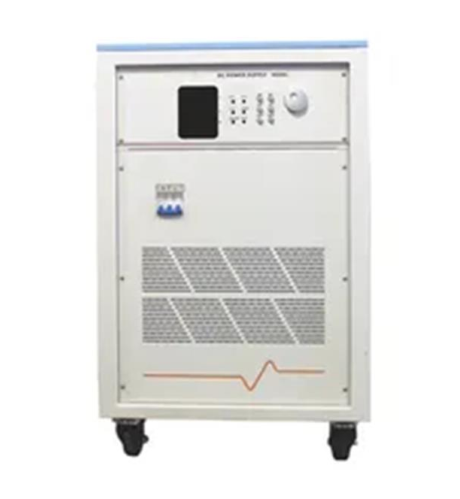

20KW PROGRAMMABLE DC POWER SUPPLIES (KPPS-20K0-A3F3)

The KPPS-20K0 family of programmable power supplies offers very high powers for flexible, reliable power systems in Industrial applications and compared with traditional power supplies, these saves room by expanding usable rack space, decreases energy consumption and simplifies testing at a competitive price.

This helps customers to save electricity costs and power capacity distribution when performing high power testing, and adapt to a range of power systems around the world. In addition, the power supply can be controlled by the supported digital USB/LAN/CAN FD/ GPIB and analog interfaces based on integration requirements of the system.

Features :

  • Wide range of input operations
  • High Current / Power capable
  • CV/CC modes priority
  • High-precision measurement
  • High speed transient response
  • Low output ripple & noise
  • Remote & local mode operation
  • Remote Compensation
  • User-friendly Functional Key operation with Display.
  • User configurable protection settings with indication
  • High speed sampling and data log
  • Standard USB, LAN, and optional RS-485, RS-422 and RS-232

Input Voltage :

180V to 275V AC
3-Phase & 4-Wire

Output Voltage :

0 to 100V DC (Max.)

Output Current :

0 to 400A (Max.)

Output Power :

20KW (Max.)
