Navy

PS 115V 400Hz I/P MULTI O/P (KPS-1K5-1807)

Application : Military Navy (Ship Borne)

Input :

230V AC (90V to 264V AC)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • Tracking between pairs output
  • Active PF Correction (≥ 0.98)
  • Remote Compensation
  • Health Status indications
  • Rugged & Highly reliable

Output :

OUTPUT-1: +5V DC / 4.2A
OUTPUT-2: -5V DC / 2.4A
OUTPUT-3: +15V DC / 6A
OUTPUT-4: -15V DC / 2A
OUTPUT-5: +15V DC / 12A
OUTPUT-6: -15V DC / 6.5A
OUTPUT-7: +5V DC / 1.2A
OUTPUT-8: +15V DC / 6A
OUTPUT-9: -15V DC / 3A
OUTPUT-10: +28V DC / 2A

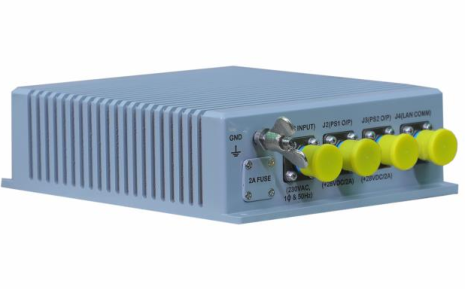

CONVERTER AC-DC FOR DISPLAY (KPS-120-1705A)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • LAN Communication Interface
  • Conduction Cooled, Baseplate
  • Isolated Outputs, Standard
  • Low output Ripple & Noise
  • Rugged & Highly reliable

Application :

Military Navy (Ship Borne)

Input :

230V AC (180V to 264V AC)

Output :

OUTPUT-1: +28V DC / 2A
OUTPUT-2: +28V DC / 2A

30W DC-DC POWER MODULE (KPM-28V0530-1604)

Application : Military Navy (Ship Borne)

Input :

230V AC (90V to 264V AC)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • Tracking between pairs output
  • Active PF Correction (≥ 0.98)
  • Remote Compensation
  • Health Status indications
  • Rugged & Highly reliable

Output :


OUTPUT-1: +5V DC / 4.0A
OUTPUT-2: -15V DC / 1.0A
OUTPUT-3: +15V DC / 9.0A
OUTPUT-4: -9V DC / 2.0A
OUTPUT-5: +9V DC / 15.0A
OUTPUT-6: -12V DC / 8.0A
OUTPUT-7: +12V DC / 15.0A
OUTPUT-8: +12V DC / 5.0A
OUTPUT-9: +15V DC / 3.0A
OUTPUT-10: +28V DC / 4.0A
OUTPUT-11: +28V DC / 4.0A

PS 230V I/P 24V/5V O/P (KPS-120-1705A)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • RS-422 Communication Interface
  • Conduction Cooled, Baseplate
  • Isolated Outputs, Standard
  • Low output Ripple & Noise
  • Rugged & Highly reliable

Application :

Military Navy (Ship Borne)

Input :

230V AC (180V to 264V AC)

Output :

OUTPUT-1: +5V DC / 5.0A
OUTPUT-2: +24V DC / 5.0A

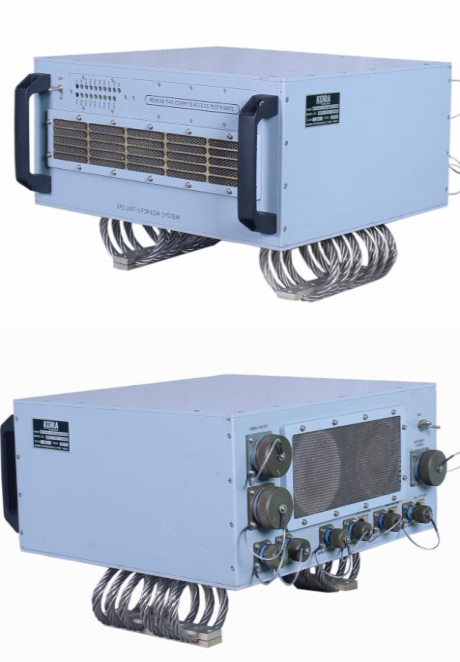

SPS UNIT-1 FOR ESM SYSTEM (KPS-1K8-1806B)

Application : Military Navy (Ship Borne)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-704D
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • Tracking between pairs output
  • Standard RS-485/232 Interface
  • Isolated Outputs, Standard
  • Remote & local mode operation
  • Remote Compensation
  • Low output Ripple & Noise
  • Health Status indications
  • Health Status indications
  • Rugged & Highly reliable

Input :

Input : 24V DC (18V to 36V DC)

Output :

OUTPUT-1: +9V DC / 6.0A
OUTPUT-2: -9V DC / 2.0A
OUTPUT-3: +8.5V DC / 4.0A
OUTPUT-4: +5V DC / 2.0A
OUTPUT-5: -8.5V DC / 4.0A
OUTPUT-6: +9V DC / 18.0A
OUTPUT-7: -9V DC / 2.0A
OUTPUT-8: +12V DC / 4.0A
OUTPUT-9: +9V DC / 18.0A
OUTPUT-10: -9V DC / 2.0A
OUTPUT-11: +15V DC / 4.0A
OUTPUT-12: +5V DC / 5.0A
OUTPUT-13: +12V DC / 4.0A
OUTPUT-14: +24V DC / 4.0A
OUTPUT-15: 230V AC / 200W
OUTPUT-16: 230V AC / 400W
OUTPUT-17: 230V AC / 150W

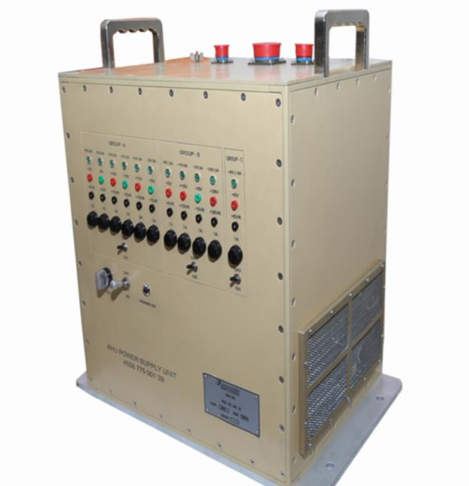

AHU PSU 230V 50Hz SMPS (KPS-0K8-1802)

Application : Military Navy (Ship Borne)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • Tracking between pairs output
  • Remote Compensation
  • Active PF Correction (≥ 0.98)
  • Health Status indications
  • Rugged & Highly reliable

Input :

230V AC (90V to 264V AC)

Output :

OUTPUT-1: +10V DC / 32.0A
OUTPUT-2: -10V DC / 2.0A
OUTPUT-3: +10V DC / 20.0A
OUTPUT-4: -10V DC / 2.0A
OUTPUT-5: +5V DC / 1.5A
OUTPUT-6: +10V DC / 1.5A
OUTPUT-7: -10V DC / 0.2A
OUTPUT-8: +5V DC / 10.0A

AC-DC FOR MON RECEIVER (KPS-0K6-1705B)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • LAN Communication Interface
  • Active PF Correction (≥ 0.98)
  • Isolated Outputs, Standard
  • Remote Compensation
  • Low output Ripple & Noise
  • Rugged & Highly reliable

Application :

Military Navy (Ship Borne)

Input :

230V AC (180V to 264V AC)

Output :

OUTPUT-1: +28V DC / 10.0A
OUTPUT-2: +28V DC / 2.0A
OUTPUT-3: +28V DC / 3.0A
OUTPUT-4: +28V DC / 2.0A

1.8KW LOW VOLTAGE PS-4 (KPS-1K8-1704D)

Application : Military Navy (Ship Borne)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • Active PF Correction (≥ 0.98)
  • RS-422 Communication Interface
  • Isolated Outputs, Standard
  • Remote Compensation
  • Low output Ripple & Noise
  • Health Status indications
  • Output monitoring terminals
  • Rugged & Highly reliable

Input :

230V AC (180V to 264V AC)

Output :

OUTPUT-1: +5V DC / 10A
OUTPUT-2: -5V DC / 3A
OUTPUT-3: +15V DC / 26A
OUTPUT-4: +15V DC / 4A
OUTPUT-5: -15V DC / 5A
OUTPUT-6: +28V DC / 5A
OUTPUT-7: +5V DC / 13A
OUTPUT-8: -5V DC / 2A
OUTPUT-9: +15V DC / 27A
OUTPUT-10: -15V DC / 2A
OUTPUT-11: -48V DC / 2A

AC-DC FOR DF PROCESSOR (KPS-1K0-1705C)

Application : Military Navy (Ship Borne)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • LAN Communication Interface
  • Active PF Correction (≥ 0.98)
  • Remote Compensation
  • Low output Ripple & Noise
  • Rugged & Highly reliable

Input :

230V AC (180V to 264V AC)

Output :

OUTPUT-1: +28V DC / 15A
OUTPUT-2: +28V DC / 10A
OUTPUT-3: +28V DC / 3A
OUTPUT-4: +28V DC / 2A

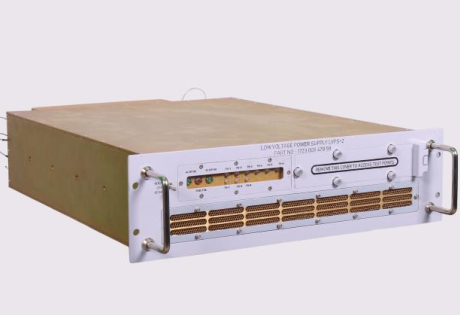

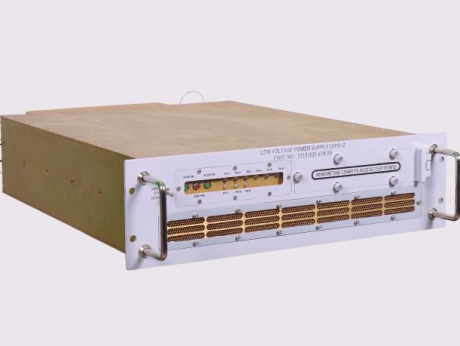

1.3KW LOW VOLTAGE PS-2 (KPS-1K3-1704B)

Application : Military Navy (Ship Borne)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • Tracking between pairs output
  • Active PF Correction (≥ 0.98)
  • RS-485/232 Interface
  • Isolated Outputs, Standard
  • Remote Compensation
  • Low output Ripple & Noise
  • Health Status indications
  • Output monitoring terminals
  • Rugged & Highly reliable

Input :

230V AC (180V to 264V AC)

Output :

OUTPUT-1: +9V DC / 25A
OUTPUT-2: +9V DC / 20A
OUTPUT-3: -9V DC / 6A
OUTPUT-4: -9V DC / 6A
OUTPUT-5: +5V DC / 20A
OUTPUT-6: +15V DC / 20A
OUTPUT-7: -15V DC / 20A
OUTPUT-8: +15V DC / 10A
OUTPUT-9: -15V DC / 4A

600W LOW VOLTAGE PS-6 (KPS-0K6-1704F)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • Active PF Correction (≥ 0.98)
  • RS-485/232 Interface
  • Conduction Cooled, Baseplate
  • Isolated Outputs, Standard
  • Low output Ripple & Noise
  • Rugged & Highly reliable

Application :

Military Navy (Ship Borne)

Input :

230V AC (180V to 264V AC)

Output :

OUTPUT-1: +5V DC / 10.0A
OUTPUT-2: +24V DC / 10.0A

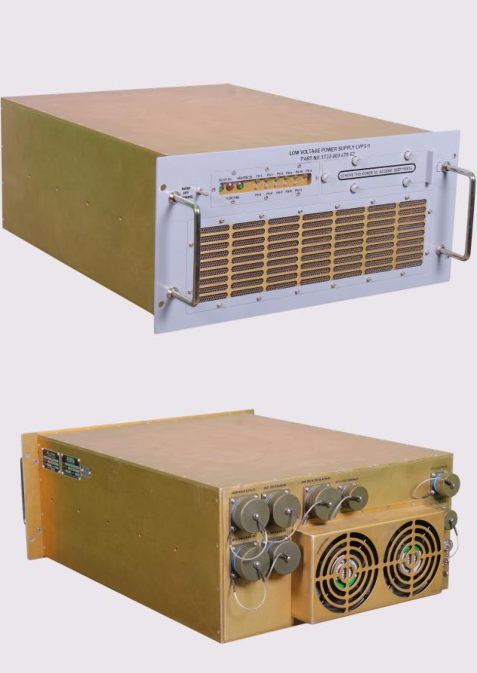

2.3KW LOW VOLTAGE PS-1 (KPS-2K3-1704A)

Application : Military Navy (Ship Borne)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • Active PF Correction (≥ 0.98)
  • Standard RS-485/232 Interface
  • Isolated Outputs, Standard
  • Remote & local mode operation
  • Tracking between pairs output
  • Remote Compensation
  • Low output Ripple & Noise
  • Health Status indications
  • Output monitoring terminals
  • Rugged & Highly reliable

Input :

230V AC (180V to 264V AC)

Output :

OUTPUT-1: +9V DC / 25A
OUTPUT-2: +9V DC / 25A
OUTPUT-3: +9V DC / 25A
OUTPUT-4: +9V DC / 25A
OUTPUT-5: -9V DC / 4A
OUTPUT-6: -9V DC / 4A
OUTPUT-7: -9V DC / 4A
OUTPUT-8: -9V DC / 4A
OUTPUT-9: +5V DC / 20A
OUTPUT-10: +15V DC / 20A
OUTPUT-11: -15V DC / 4A
