High Voltage Power Supplies

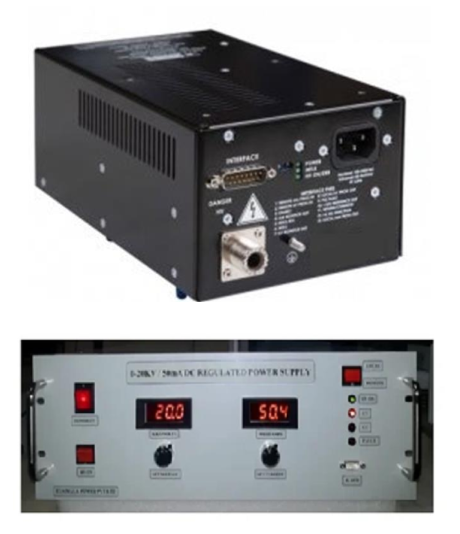

HIGH VOLTAGE AC-DC POWER SUPPLY (KHPS-10K-D50K)

The KHPS-10K series is a range of enclosed, programmable, low ripple, high voltage power supplies capable of supplying voltages up to 50KV and power to 10KW. These are fast response units with tight regulation. They are air insulated thereby offering a lower cost of life ownership, are lighter and are more environmentally friendly than potted or oil insulated alternatives.


Features :

  • Rated power: 10KW Max.
  • Voltage range: 1KV to 50KV
  • Current range: 1A Max.
  • 0 to 100% programmable voltage & current
  • Output voltage & current regulated
  • Efficiency > 80%
  • Low ripple < 0.1% RMS of rated voltage at full load

  • Short circuit, arc, overload & thermal protection
  • 3 phase AC input. 480VAC standard, 380VAC & 415VAC optional
  • Voltage & current monitor outputs
  • Local, analog, & RS232/USB digital control. Ethernet is optional
  • Operating temperature: 0°C to +40°C, no derating
