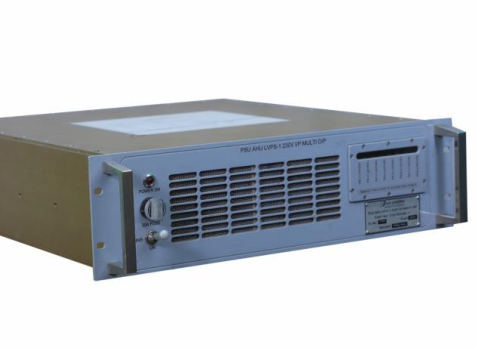

PSU AHU LVPS-1 230V I/P MULTI O/P (KPS-1K5-1601)

Application : Military Ground (LBS)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • Tracking between pairs output
  • Active PF Correction (≥ 0.98)
  • Remote & local mode operation
  • Remote Compensation
  • RS-422 Communication Interface
  • Health Status indications
  • Rugged & Highly reliable

Input :

230V AC (180V to 264V AC)

Output :

OUTPUT-1: +5V DC / 3.0A
OUTPUT-2: -9V DC / 5.0A
OUTPUT-3: +9V DC / 18.0A
OUTPUT-4: +9V DC / 18.0A
OUTPUT-5: -15V DC / 9.0A
OUTPUT-6: +15V DC / 7.0A
OUTPUT-7: +15V DC / 7.0A
OUTPUT-8: +28V DC / 18.0A

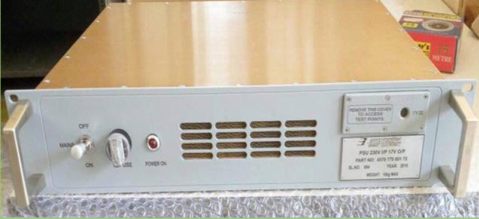

PSU 230V I/P 17V O/P (KPS-300-1602)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • Active PF Correction (≥ 0.98)
  • Remote Compensation
  • Isolated Outputs, Standard
  • Low output Ripple & Noise
  • Health Status indications
  • Rugged & Highly reliable

Application :

Military Ground (LBS)

Input :

230V AC (180V to 264V AC)

Output :

+17V DC / 300W

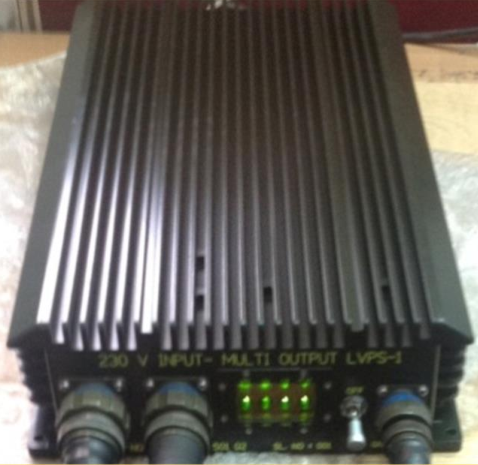

230V I/P MULTI O/P LVPS-1 (KPS-1K2-1501)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Designed for IP-67 (OUTDOOR)
  • Operating Temp: -40°C to +85°C
  • Tracking between pairs output
  • Active PF Correction (≥ 0.98)
  • Remote Compensation
  • Health Status indications
  • Rugged & Highly reliable

Application :

Military Ground (LBS)

Input :

230V AC (90V to 264V AC)

Output :

OUTPUT-1: +5V DC / 10.0A
OUTPUT-2: -15V DC / 2.0A
OUTPUT-3: +15V DC / 10.0A
OUTPUT-4: -9V DC / 10.0A
OUTPUT-5: +9V DC / 15.0A
OUTPUT-6: +9V DC / 15.0A
OUTPUT-7: +9V DC / 15.0A

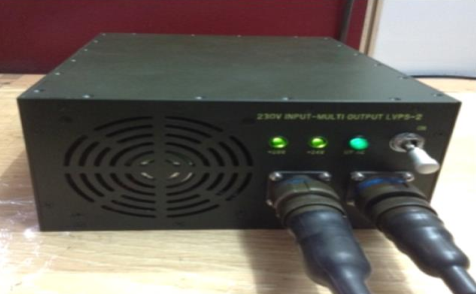

230V I/P MULTI O/P LVPS-2 (KPS-600-1502)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • RS-422 Communication Interface
  • Active PF Correction (≥ 0.98)
  • Isolated Outputs, Standard
  • Low output Ripple & Noise
  • Rugged & Highly reliable

Application :

Military Ground (LBS)

Input :

230V AC (180V to 264V AC)

Output :

OUTPUT-1: +28V DC / 10.0A
OUTPUT-2: +24V DC / 8.0A

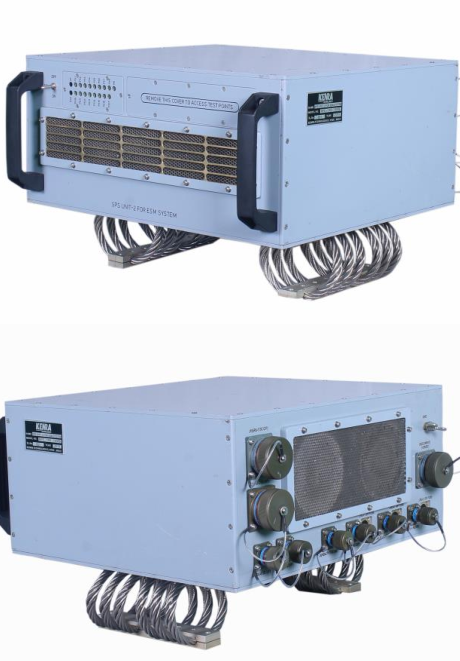

SHAR ESM - AHU PSU (KPS-A0M1K0-1706)

Application :

Military Ground (LBS)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • Standard RS-485/232 Interface
  • Tracking between pairs output
  • Isolated Outputs, Standard
  • Remote & local mode operation
  • Remote Compensation
  • Low line & load regulations
  • Low output Ripple & Noise
  • Health Status indications
  • Output monitoring terminals
  • Rugged & Highly reliable

Input :

230V AC (180V to 264V AC)

Output :

OUTPUT-1: +12V DC / 10.0A
OUTPUT-2: -12V DC / 1.5A
OUTPUT-3: +12V DC / 10.0A
OUTPUT-4: -12V DC / 1.5A
OUTPUT-5: +12V DC / 10.0A
OUTPUT-6: -12V DC / 1.5A
OUTPUT-7: +12V DC / 10.0A
OUTPUT-8: -12V DC / 1.5A
OUTPUT-9: +15V DC / 1.5A
OUTPUT-10: -15V DC / 0.5A
OUTPUT-11: +5V DC / 5.0A
OUTPUT-12: +28V DC / 5.0A
OUTPUT-13: +12V DC / 1.0A
OUTPUT-14: -12V DC / 0.5A

SMPS AC-DC (DUAL OUTPUT) (KPS-A00K6-1701B)

Features :

  • Designed for MIL-STD-461E/F
  • Designed for MIL-STD-810G
  • Operating Temp: -40°C to +85°C
  • Remote Compensation
  • Low output Ripple & Noise
  • wide operating input range
  • Isolated Outputs, Standard
  • power good indications
  • Conduction cooled
  • Rugged & Highly reliable

Application :

Military Ground (LBS)

Input :

230V AC (180V to 264V AC)

Output :

OUTPUT-1: +28V DC / 10.0A
OUTPUT-2: +28V DC / 10.0A
