Charging Power Supplies

HV CAPACITOR CHARGING POWER SUPPLIES (KHCC-10K-D10K)

The KHCC-10K series capacitor charger power supply units have their uses in applications requiring a pulsed power supply, as well as other typical applications such as for critical research institutes in the fields of Atomic, Defence and Nuclear research and the provision of military power supplies.


The KHCC-10K series Capacitor charging power supplies using a rugged IGBT based inverter running in resonant mode to achieve high efficiency. This high voltage power supplies have a voltage range of 1KV to 10KV with power outputs from 1000W to 10KW.

Features :

  • Rated power: 10KW Max.
  • Voltage range: 10KV Max.
  • CW/Pulse mode operation
  • Internal and external trigger mode operation
  • Output synchronous signal generation
  • Remote sensing for output measurements
  • Optional Oil cooled or air cooled chamber


Input :

3-Phase 200 to 275V AC (4Wire) /
3-Phase 380 to 455V AC (3Wire)

Output :

HV Range from 1KV to 10KV DC

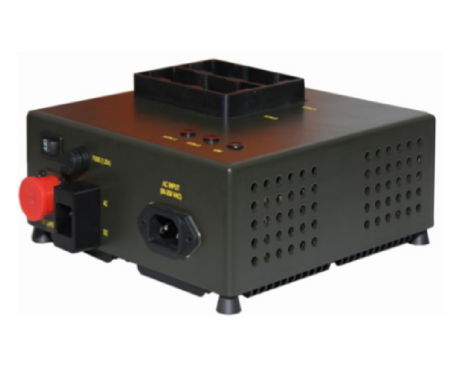

DUAL CHANEL Li-ion BATTERY CHARGER (KBC-150-1703)

Features :

  • Designed for EN61204-3
  • Designed for EN61000-3-2, class A
  • Designed for both AC & DC input
  • Operating Temp: -10°C to +45°C
  • wide operating input range
  • Isolated Outputs, Standard
  • Input power good indications
  • Battery status indication
  • Rugged & Highly reliable

Application :

Military Ground (LBS)

AC Input :

230V AC (90V to 264V AC)

DC Input

230V AC (90V to 264V AC)

Output :

OUTPUT-1: +16.5V DC / 2.0A
OUTPUT-2: +16.5V DC / 2.0A
